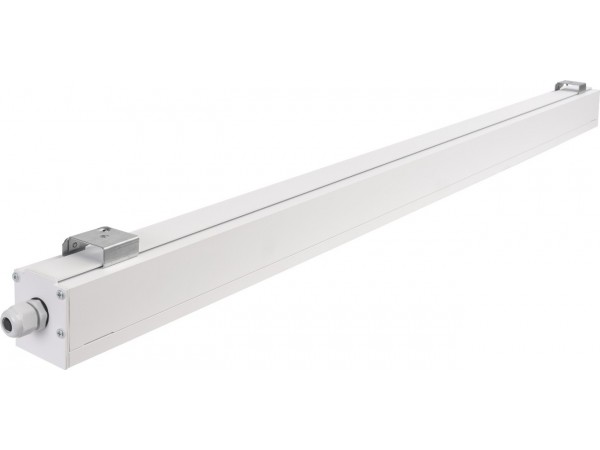

Northcliffe - Mizar Led
Gyártó: Northcliffe
Termék neve: Mizar LED
Felhasználás: üzlethelyiség, közösségi tér

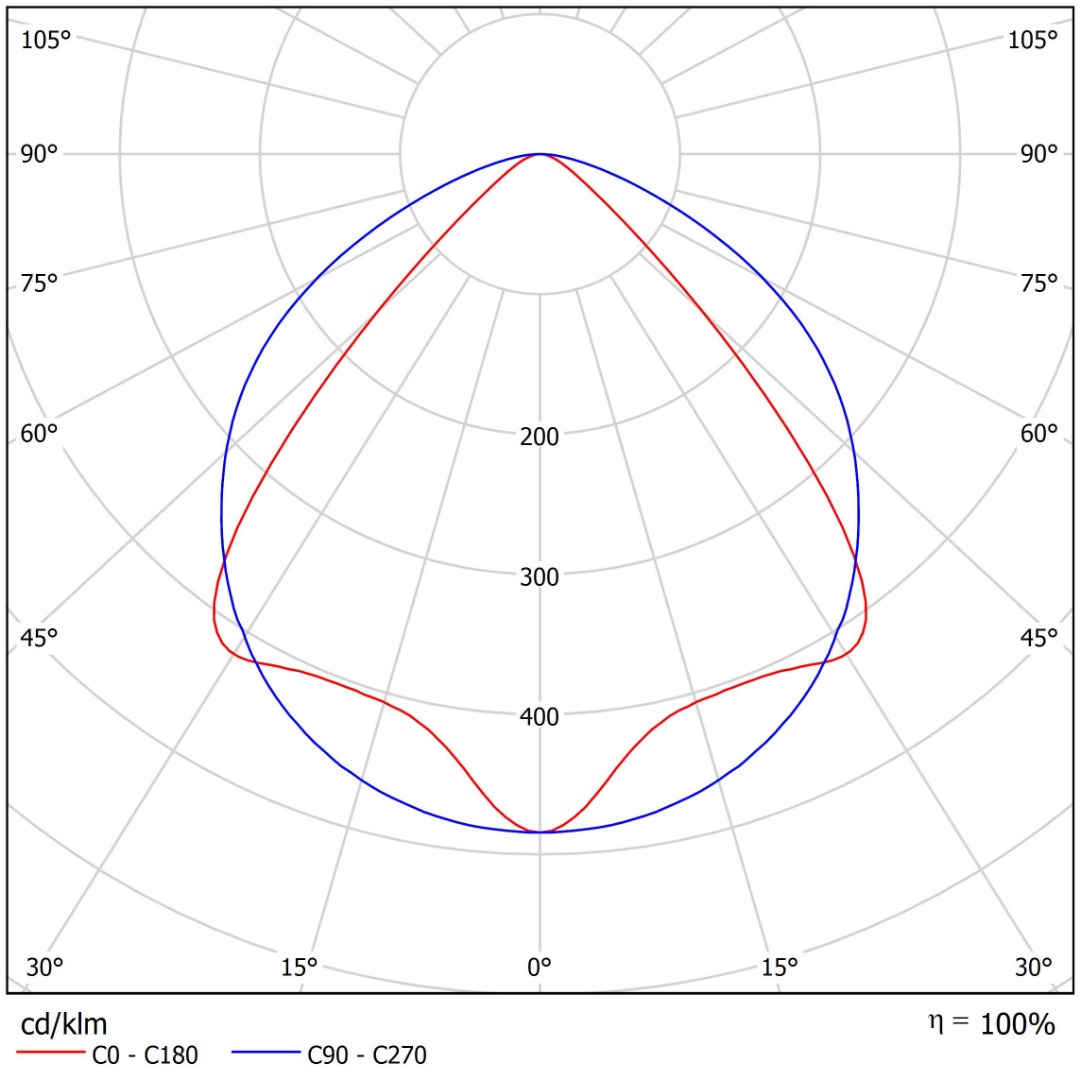

Sugárzási szög: 100°
LED élettartam: 100000/L80B10
Hálózati feszültség: 220-240V, 50-60Hz
Színhőmérséklet: 3000K, 4000 K
CRI/Ra: 80+
Védelem: IP65, IK08
Üzemeltethetőség: 0 - +40°C
Anyag: alumínium ház
Opciók: Dali, biztonsági világítás
Adatlap: Mizar Led adatlap
Termékváltozatok

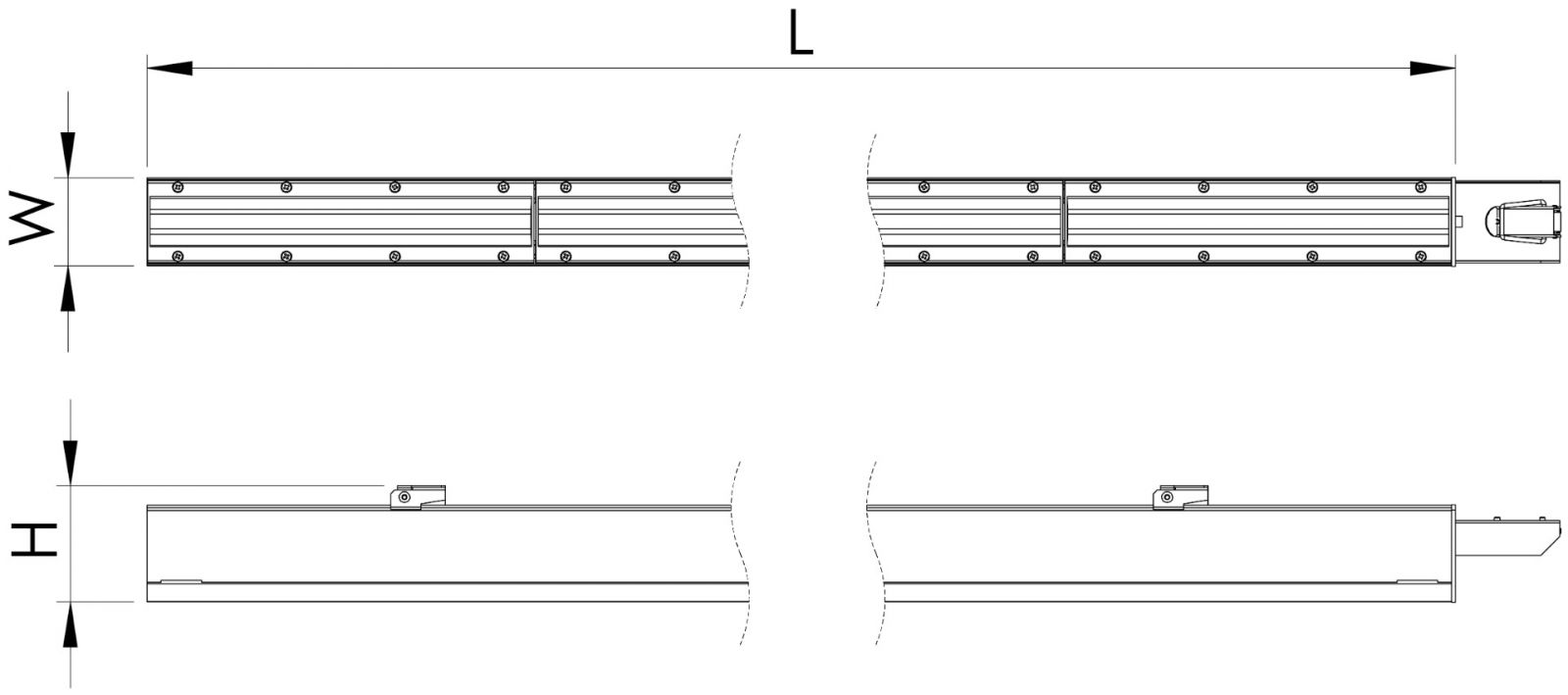

| Termék | Hossz (mm) | Szélesség (mm) | Magasság (mm) | Fényáram (lm) | Teljesítmény (W) | Fényhasznosítás (lm/W) | Színhőmérséklet (K) | Tömeg (kg) |
| Mizar LED1x5350 J877 T830 LS90x110 LO1 LL | 1146 | 65 | 86 | 5100 | 29,8 | 171 | 3000 | 3,8 |
| Mizar LED1x6400 J878 T830 LS90x110 LO2 LL | 1146 | 65 | 86 | 6089 | 35,7 | 171 | 3000 | 3,8 |
| Mizar LED1x7350 J879 T830 LS90x110 LO3 LL | 1146 | 65 | 86 | 7019 | 41,5 | 169 | 3000 | 3,8 |
| Mizar LED1x6650 K069 T830 LS90x110 LO1 LL | 1432 | 65 | 86 | 6375 | 36,8 | 173 | 3000 | 4,6 |
| Mizar LED1x7950 K070 T830 LS90x110 LO2 LL | 1432 | 65 | 86 | 7611 | 44,6 | 171 | 3000 | 4,6 |
| Mizar LED1x9200 K071 T830 LS90x110 LO3 LL | 1432 | 65 | 86 | 8774 | 52,4 | 167 | 3000 | 4,6 |
| Mizar LED1x9350 K400 T830 LS90x110 LO3 LL | 2004 | 65 | 86 | 8925 | 50,5 | 177 | 3000 | 6,2 |
| Mizar LED1x11150 K401 T830 LS90x110 LO3 LL | 2004 | 65 | 86 | 10655 | 61,1 | 174 | 3000 | 6,2 |
| Mizar LED1x12850 K402 T830 LS90x110 LO3 LL | 2004 | 65 | 86 | 12284 | 71,9 | 171 | 3000 | 6,2 |
| Mizar LED1x13300 K072 T830 LS90x110 LO1 LL | 2862 | 65 | 86 | 12750 | 72,9 | 175 | 3000 | 8,7 |
| Mizar LED1x15900 K073 T830 LS90x110 LO2 LL | 2862 | 65 | 86 | 15221 | 86,4 | 176 | 3000 | 8,7 |
| Mizar LED1x18350 K074 T830 LS90x110 LO3 LL | 2862 | 65 | 86 | 17549 | 101,6 | 173 | 3000 | 8,7 |
| Mizar LED1x5350 J877 T840 LS90x110 LO1 LL | 1146 | 65 | 86 | 5318 | 29,8 | 178 | 4000 | 3,8 |
| Mizar LED1x6400 J878 T840 LS90x110 LO2 LL | 1146 | 65 | 86 | 6351 | 35,7 | 178 | 4000 | 3,8 |
| Mizar LED1x7350 J879 T840 LS90x110 LO3 LL | 1146 | 65 | 86 | 7322 | 41,5 | 176 | 4000 | 3,8 |
| Mizar LED1x6650 K069 T840 LS90x110 LO1 LL | 1432 | 65 | 86 | 6650 | 36,8 | 181 | 4000 | 4,6 |
| Mizar LED1x7950 K070 T840 LS90x110 LO2 LL | 1432 | 65 | 86 | 7939 | 44,6 | 178 | 4000 | 4,6 |
| Mizar LED1x9200 K071 T840 LS90x110 LO3 LL | 1432 | 65 | 86 | 9153 | 52,4 | 175 | 4000 | 4,6 |
| Mizar LED1x9350 K400 T840 LS90x110 LO3 LL | 2004 | 65 | 86 | 9310 | 50,5 | 184 | 4000 | 6,2 |
| Mizar LED1x11150 K401 T840 LS90x110 LO3 LL | 2004 | 65 | 86 | 11115 | 61,1 | 182 | 4000 | 6,2 |
| Mizar LED1x12850 K402 T840 LS90x110 LO3 LL | 2004 | 65 | 86 | 12814 | 71,9 | 178 | 4000 | 6,2 |
| Mizar LED1x13300 K072 T840 LS90x110 LO1 LL | 2862 | 65 | 86 | 13300 | 72,9 | 182 | 4000 | 8,7 |
| Mizar LED1x15900 K073 T840 LS90x110 LO2 LL | 2862 | 65 | 86 | 15878 | 86,4 | 184 | 4000 | 8,7 |
| Mizar LED1x18350 K074 T840 LS90x110 LO3 LL | 2862 | 65 | 86 | 18306 | 101,6 | 180 | 4000 | 8,7 |
| BLANK Mizar LED assembly L1146mm RAL9003 | 1146 | 65 | 86 | — | — | — | — | — |
| BLANK Mizar LED assembly L1432mm RAL9003 | 1432 | 65 | 86 | — | — | — | — | — |
| BLANK Mizar LED assembly L2004mm RAL9003 | 2004 | 65 | 86 | — | — | — | — | — |
| BLANK Mizar LED assembly L2862mm RAL9003 | 2862 | 65 | 86 | — | — | — | — | — |
| BLANK Mizar LED assembly L1000mm RAL9003 (Custom) | 1000 | 65 | 86 | — | — | — | — | — |
| BLANK Mizar LED DALI assembly L1146mm RAL9003 | 1146 | 65 | 86 | — | — | — | — | — |
| BLANK Mizar LED DALI assembly L1432mm RAL9003 | 1432 | 65 | 86 | — | — | — | — | — |
| BLANK Mizar LED DALI assembly L2004mm RAL9003 | 2004 | 65 | 86 | — | — | — | — | — |
| BLANK Mizar LED DALI assembly L2862mm RAL9003 | 2862 | 65 | 86 | — | — | — | — | — |
| BLANK Mizar LED DALI assembly L1000mm RAL9003 (Custom) | 1000 | 65 | 86 | — | — | — | — | — |
